XF-2412; XF-2020; XF-235; XF-2402N
Polyester polyols are a cornerstone material in the production of various types of panels, particularly rigid polyurethane (PUR) and polyisocyanurate (PIR) foam panels used for insulation.
Here’s a comprehensive breakdown of polyester polyols for panels, covering why they are used, their properties, types, and the applications they enable.
At its core, a polyester polyol is a polymer with multiple hydroxyl (-OH) groups. It is formed by a condensation reaction between polyacids (e.g., dicarboxylic acids like phthalic anhydride, adipic acid) and polyols (e.g., glycols like diethylene glycol).
In the context of panels, it serves as one of the two main liquid components (the "B-Side" or "Resin") that reacts with the other component (the "A-Side", typically MDI - Methylene Diphenyl Diisocyanate) to create polyurethane foam.
Polyester-based systems are chosen over the more common polyether polyols for specific, high-performance applications due to their superior properties:
Excellent Thermal Stability and Fire Resistance: This is the single most important reason.
They form Polyisocyanurate (PIR) Foam, which has a highly cross-linked, thermally stable structure. PIR foam has a much higher continuous service temperature and significantly better fire performance compared to standard PUR foam. It exhibits low flame spread and low smoke development.
High Rigidity and Strength:
The aromatic ring structures (e.g., from phthalic anhydride) in the polyester backbone create a rigid polymer matrix. This results in foam with high compressive strength and dimensional stability, which is crucial for structural sandwich panels.
Good Adhesion to Substrates:
Polyester polyols provide excellent adhesion to the metal facers (steel, aluminum) and other substrates (OSB, plywood) commonly used in composite panels.
Resistance to Chemicals and Hydrocarbons:
They offer better resistance to a wide range of chemicals, solvents, and hydrocarbon-based fuels compared to polyether polyols.
Higher Viscosity: Polyester polyols are generally more viscous than polyethers, which can make them slightly more challenging to process and may require heated lines.
Hydrolytic Instability: This is their main weakness. The ester bonds (-COO-) can be susceptible to hydrolysis (breakdown by water) over time, especially in high-humidity and high-temperature environments. Formulations are carefully balanced to mitigate this.
Typically Higher Cost: The raw materials and production process for polyester polyols are often more expensive than for polyethers.
Polyester polyols are used to produce two main types of insulating foam cores:
Polyisocyanurate (PIR) Panels: This is the most common application. The reaction is modified to have a high Isocyanate Index (typically >250), creating a foam rich in isocyanurate rings. These panels are the gold standard for industrial and commercial building insulation due to their superior fire performance.
Rigid Polyurethane (PUR) Panels: Used where a balance of good insulation, strength, and cost is needed. The Isocyanate Index is lower (around 100-115). Polyester polyols are used here when extra strength or specific chemical resistance is required.

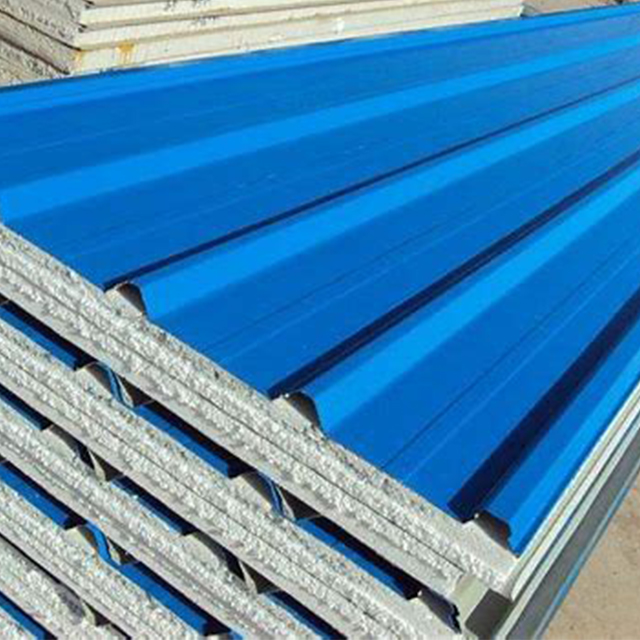

Architectural & Industrial Sandwich Panels: For walls and roofs of factories, warehouses, cold storage facilities, and commercial buildings.
Cold Storage & Refrigerated Panels: The high R-value (insulating efficiency) and strength are critical for freezer and cooler buildings.
Industrial Doors: The rigidity and light weight of the foam core are ideal for large sectional doors.
Transportation: Used in the bodies of refrigerated trucks and containers (reefers).
A "B-Side" system for panel production is not just pure polyester polyol. It's a complex blend:
| Component | Function |
|---|---|
| Polyester Polyol | The main resin backbone; determines basic properties like rigidity and thermal stability. |
| Catalysts | Accelerate the reaction between polyol and isocyanate (gelation) and promote the formation of isocyanurate rings (trimerization) for PIR. |
| Blowing Agents | Create the foam's cellular structure. Today, this is primarily pentane (cyclopentane, iso-pentane) or HFOs (Hydrofluoro-Olefins) as environmentally friendly alternatives to older HFCs. Water (which produces CO₂) can also be used in combination. |
| Surfactants (Silicones) | Control cell structure, stabilize the rising foam to prevent collapse, and ensure a uniform, fine-celled foam. |
| Flame Retardants | Further enhance the fire resistance. Common examples include halogenated or phosphorus-based compounds. |
| Fillers & Additives | Can include pigments, plasticizers, or additives to improve hydrolysis stability. |
This is the most common method for producing large volumes of insulation panels:
Metering & Mixing: The A-Side (MDI) and B-Side (polyester polyol blend) are precisely metered and fed into a high-pressure mixing head.
Pouring & Distribution: The mixed liquid is poured onto the bottom metal facer (e.g., pre-painted steel) as it moves along a conveyor.
Rising & Curing: The liquid mixture begins to foam and rise, filling the cavity between the bottom and top facers. The conveyor runs through a heated double-belt press that controls the panel thickness and cures the foam.
Cutting & Trimming: The continuous panel is cut to the required length, trimmed, and packaged.
| Feature | Polyester Polyol (for PIR/PUR) | Polyether Polyol (for PUR) |
|---|---|---|
| Primary Use | High-performance PIR/PUR Panels | Standard PUR Panels |
| Fire Performance | Excellent (forms PIR) | Good (with flame retardants) |
| Thermal Stability | High | Moderate |
| Compressive Strength | High | Good |
| Hydrolytic Stability | Poor to Fair | Excellent |
| Viscosity | High | Low |
| Chemical Resistance | Good | Fair |
| Typical Cost | Higher | Lower |
Parameters
| Product Model | Hydroxyl value (mgKOH/g) | Acid Value (mgKOH/g) | Moisture (%) | Viscosity (CPS 25℃) |
| XF-2412 | 260±10 | ≤1.5 | ≤0.1 | 8000+1500 |
| XF-2020 | 200±10 | ≤1.5 | ≤0.1 | 7000±1000 |
| XF-235 | 230-245 | ≤2.0 | ≤0.15 | 10500±1500 |
| XF-2402N | 240±10 | ≤1.5 | ≤0.1 | 8000±1500 |
Conclusion:
Polyester polyols are the enabling chemistry for high-performance, fire-resistant rigid foam insulation panels. While they present some processing and durability challenges (hydrolysis), their unmatched combination of thermal stability, strength, and fire safety makes them the material of choice for demanding applications in the construction and cold chain industries. When you see a modern warehouse, factory, or cold storage facility, there's a very high chance its insulation core was made using a polyester polyol system.
