In the complex world of polyurethane (PU) manufacturing, formulators face a constant, critical tension: balancing the "gelling" reaction with the "blowing" reaction. The gelling process involves isocyanates reacting with polyols to form the solid polymer matrix, while the blowing reaction generates the gas necessary to expand that matrix into foam. If these two competing speeds are not perfectly synchronized, the result is catastrophic—foam that collapses into a dense mass or shrinks due to closed cells. Success lies in precise chemical control.
For decades, one molecule has stood as the industry benchmark for resolving this delicate balance: Triethylene Diamine (TEDA), historically known by the trade name DABCO. As a highly efficient tertiary amine, TEDA provides the reliability needed to scale production from lab beakers to continuous industrial lines. This guide moves beyond basic definitions to evaluate TEDA’s unique chemical mechanism, compare its commercial solution forms (pure crystals versus DPG solutions), analyze its impact on foam density and hardness, and outline essential handling protocols for safe industrial application.
Mechanism: TEDA is a strong nucleophile with a unique "cage" structure, favoring gelling (k1=10.90) while supporting controlled blowing, preventing foam collapse.
Commercial Forms: While available as a hygroscopic crystal, the industry standard is a 33% solution in Dipropylene Glycol (DPG/A33) for dosing accuracy and safety.
Performance ROI: enhances cross-linking density, improving compressive strength, cure rates, and mold release times without excessive shrinkage.
Safety & Compliance: Requires strict EHS protocols to manage "Blue Haze" (glaucopsia) and corrosion risks; chemically incompatible with copper and latex.
To understand why TEDA is indispensable, one must look at its molecular architecture. It is not merely another amine; its structural geometry grants it catalytic superpowers that generic linear amines cannot match. This section dissects the "cage" effect and quantifies how it drives the gelling reaction.
Chemically, Triethylene Diamine is defined as 1,4-diazabicyclo[2.2.2]octane. While the name is a mouthful, the structure is elegant. Imagine a cage-like shape where two nitrogen atoms are bridgeheads connected by three ethylene chains. This configuration is rigid and highly symmetrical.
Most tertiary amines have "bulky substituents"—large groups of atoms attached to the nitrogen that physically block it from interacting with other molecules (steric hindrance). TEDA is different. Its nitrogen atoms have their lone pairs of electrons facing outward, completely unhindered. This accessibility allows the electrons to attack the carbon atom of the isocyanate group with exceptional speed and ease. The result is the formation of a highly active, albeit unstable, transition complex. This complex significantly lowers the activation energy required for the hydroxyl groups (from the polyol) to react with the isocyanate, accelerating the formation of the urethane bond—the backbone of the polymer.
In polyurethane chemistry, feelings do not matter; reaction rate constants do. We measure catalytic activity using constants: k1 represents the speed of the gelling reaction (urethane formation), and k2 represents the blowing reaction (gas generation).
TEDA is scientifically classified as a gelling-biased catalyst. Research data typically assigns it a relative gelling activity (k1) of approximately 10.90. In contrast, its blowing activity is significantly lower. This dominance is crucial. If a system generates gas (blowing) faster than the polymer walls can support it (gelling), the bubbles burst, and the foam collapses. TEDA drives the gelling reaction fast enough to increase viscosity and "trap" the CO2 gas as it expands. This ensures the foam rises stably without fissures or "side-collapse," creating a robust cellular network.
A major advantage of using TEDA is the breadth of the "processing window" it affords manufacturers. In a controlled lab, temperature and humidity are constant. On a factory floor, they fluctuate. High humidity can inadvertently accelerate blowing; low temperatures can stall gelling. TEDA is robust enough to maintain its catalytic activity across these variations.
By providing a strong, reliable baseline for cure speed, it allows formulators to tweak other additives without causing catastrophic failure. It acts as a safety net, ensuring that even if environmental conditions drift slightly, the foam will likely still meet physical specifications.
While the molecule itself is powerful, the form in which it is delivered to the mixing head determines its usability. TEDA is commercially available in two primary states: pure crystalline solid and liquid solution. Understanding the trade-offs between these forms is essential for operational efficiency.
Pure Triethylene Diamine exists as a white, crystalline solid with a melting point of approximately 158°C. While using 100% active material might seem efficient on paper, it presents significant logistical nightmares for production managers.
First, pure TEDA has a high vapor pressure, meaning it sublimates (turns from solid to gas) readily at room temperature. This creates inhalation hazards and loss of material. Second, it is severely hygroscopic. If a bag of pure TEDA crystals is left open, it will rapidly absorb moisture from the air, causing the crystals to clump into hard rocks that are impossible to feed into automated dosing systems. Finally, micro-dosing a solid into a liquid polyol stream requires specialized melting equipment or heated lines, adding capital cost and complexity to the plant.

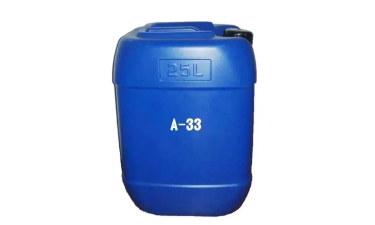

To overcome these physical limitations, the chemical industry developed a standardized liquid solution: 33% TEDA dissolved in 67% Dipropylene Glycol (DPG). This formulation is widely recognized by trade names like "A33" or "L33."
Operational Benefits of the Solution Form:
Flow & Metering: The DPG solution has a low viscosity compatible with standard high-pressure foaming pumps. It allows for precise liquid metering, ensuring the exact amount of catalyst enters the mix head every shot.
Volatility Control: The glycol carrier effectively suppresses the vapor pressure of the amine. This significantly reduces the emission of hazardous vapors compared to handling open bags of crystals, improving plant air quality.
Cost-Efficiency: By eliminating the need for on-site melting tanks or heated hoppers, the solution form reduces energy consumption and equipment maintenance. It is a "plug-and-play" polyurethane catalyst option for standard lines.
The table below summarizes the practical differences between the two forms:
| Feature | Pure TEDA (Crystals) | TEDA Solution (33% in DPG) |
|---|---|---|
| Physical State | Solid Crystalline | Clear Liquid |
| Handling Difficulty | High (Sublimation, Clumping) | Low (Pumpable liquid) |
| Equipment Needs | Melting tanks or solid feeders | Standard liquid metering pumps |
| Primary Use Case | Specialized chemical synthesis | Standard Flexible & Rigid Foam |
When should you buy which? Specify pure TEDA only if your process cannot tolerate the hydroxyl groups found in Dipropylene Glycol (DPG), or if you are synthesizing a custom catalyst blend where DPG is an unwanted diluent. For 99% of polyurethane foam manufacturers—including flexible slabstock, molded seats, and rigid insulation—the 33% solution is the correct technical and economic choice.
The inclusion of Triethylene Diamine in a formulation does more than just make the reaction happen; it defines the physical character of the final product. From the firmness of a mattress to the insulation value of a fridge wall, TEDA leaves its mark.
The primary role of TEDA is to build the polymer network. By driving the reaction between isocyanates and polyols efficiently, it promotes a higher cross-linking density. This molecular tightness translates directly into macroscopic strength.
Hardness & Load Bearing: Foams catalyzed with TEDA exhibit a closer packed cellular structure. This results in higher Indentation Force Deflection (IFD) values, meaning the foam is firmer and offers better support. For furniture and bedding applications, this compressive strength is a key quality indicator.
Cure Time: Production throughput is money. TEDA accelerates the "tack-free" time—the moment when the foam surface is no longer sticky. Faster surface curing means molds can be opened sooner, and parts can be demolded without tearing. This reduction in cycle time allows factories to produce more units per shift without adding new molds or presses.
Defects like surface voids or internal splits are often caused by poor catalyst choices. TEDA helps mitigate these issues through its balanced reactivity profile.
Skin Quality: In molded applications like automotive seating, the foam skin must be smooth and defect-free. TEDA ensures the surface cures fully against the mold wall, preventing "loose skin" or tackiness that can ruin the aesthetic of the part.
Flowability: While TEDA is a fast gelling catalyst, it does not act instantly. It maintains sufficient mobility during the initial pour—before the "cream time" transitions to full rise. This allows the liquid mixture to flow into complex mold geometries and corners before the viscosity becomes too high to move.
In flexible slabstock production, TEDA is critical for preventing bottom collapse. As the massive foam bun rises, the weight of the material can crush the bottom layers if the polymer structure hasn't set. TEDA hardens these struts early enough to support the weight. Conversely, in rigid foam for insulation, TEDA ensures dimensional stability. If the polymer network is too weak, the cooling gas inside the cells creates a vacuum that shrinks the panel. TEDA builds the strength required to resist this shrinkage.
No catalyst works alone. A successful PU formulation is a symphony of different additives. TEDA is the section leader for gelling, but it requires partnership with blowing catalysts to create low-density foam.
It is helpful to view TEDA not as a competitor to blowing catalysts, but as an essential partner. In a typical formulation, you will see a "catalyst package" containing both types. The art of formulation is adjusting the ratio between them.
BDMAEE is the industry standard for blowing. Its structure allows it to chelate (grab) water molecules efficiently, driving the isocyanate-water reaction that produces CO2 gas.
Think of the foam creation process like building a house. TEDA builds the wooden frame (the urethane struts), while BDMAEE inflates the rooms (the air cells). If you have too much BDMAEE (blowing) and not enough TEDA (gelling), you get a lot of gas but no structure to hold it—the "house" collapses. If you have too much TEDA and not enough BDMAEE, the structure sets too fast before the gas can expand, resulting in a dense, shrunken brick with closed cells. The ratio must be tuned to ensure the structure hardens exactly when the expansion reaches its peak.
DMCHA is a workhorse catalyst often used in rigid foams because it is inexpensive. It offers moderate activity in both gelling and blowing but excels in neither. While DMCHA is cost-effective for general-purpose spray foams, it lacks the "snap cure" capability of TEDA. For high-performance applications requiring rapid demolding or superior surface finish, TEDA is superior. Formulators often use DMCHA as the bulk catalyst and add a small amount of TEDA to "top off" the cure speed and improve final physical properties.
Despite its benefits, Triethylene Diamine is a potent chemical that demands respect. Industrial scale-up requires strict adherence to Environment, Health, and Safety (EHS) protocols to protect workers and equipment.
The most notorious side effect of amine exposure is "Blue Haze" or glaucopsia. This is a temporary visual disturbance caused when amine vapors react with the moisture in the eye, causing the corneal swelling (edema).
What it feels like: Workers may report seeing halos around lights, blurry vision, or a blue-grey tint to their vision. It can be alarming but is generally reversible once exposure stops. Mitigation: The only effective prevention is engineering controls. Facilities must have robust local exhaust ventilation (LEV) at mixing heads and pouring stations. Relying solely on open windows is insufficient. Vapor management is critical not just for compliance, but for workforce morale.
TEDA is alkaline and corrosive to certain metals and elastomers. Designing your delivery system with the wrong materials will lead to leaks and contamination.
Corrosion Warning: Do not use copper, brass, or bronze fittings. TEDA will attack copper alloys, creating a blue-green sludge that clogs filters and nozzles. All piping, tanks, and valves must be constructed from Stainless Steel (304 or 316) or Aluminum.
PPE Requirements: Standard latex gloves offer zero protection against amines; the chemical permeates through latex rapidly. Workers must wear Nitrile, Neoprene, or Butyl Rubber gloves. Eye protection should include chemical splash goggles, not just safety glasses, due to the risk of corneal edema.
TEDA solutions are hygroscopic. If a drum is left unsealed, it will absorb atmospheric moisture. Water acts as a blowing agent in PU foam; if your catalyst has absorbed unknown amounts of water, your carefully calculated index will be wrong, leading to off-ratio foam. Always store drums tightly sealed, preferably under a dry nitrogen blanket if possible, to maintain dosing accuracy.
Triethylene Diamine remains the backbone of the global polyurethane industry for a reason. Its unparalleled ability to balance rapid gelling with a wide processing window makes it the catalyst of choice for everything from car seats to refrigerator insulation. While newer specialized catalysts exist, few offer the same reliable combination of cure speed, physical property enhancement, and cost-effectiveness.
For most manufacturers, the decision is clear: the 33% solution in DPG (A33) offers the best Total Cost of Ownership. It balances the lower material cost of standard amines with the operational ease of a liquid, stable formulation. However, simply buying the product is not enough. Success requires auditing your current "Blow/Gel" ratios to ensure TEDA is being utilized to its full potential.
We encourage formulators to review their current catalyst packages. Are you experiencing shrinkage? You may have too much gelling. Are you seeing collapse? You may need more TEDA. Request the technical data sheets (TDS) for specific grades like L33 or A33 to fine-tune your production line for maximum efficiency and minimum scrap.
A: They are chemically identical. DABCO stands for 1,4-diazabicyclo[2.2.2]octane, which is the chemical structure of Triethylene Diamine. DABCO was originally a trade name that became a genericized trademark in the industry, much like "Kleenex" for tissues. When you see TEDA or DABCO specified in a formulation, they refer to the same active molecule.
A: Pure TEDA is a solid crystal that sublimates (releases vapors) and absorbs moisture efficiently, making it difficult to handle and dose accurately. Dissolving it in Dipropylene Glycol (DPG) creates a stable, liquid solution that is easy to pump, measure, and mix in standard foaming equipment while significantly reducing hazardous vapor emissions.
A: Yes, TEDA is highly versatile. It is a primary gelling catalyst for flexible slabstock and molded foams (like car seats). It is also widely used in rigid insulation foams to ensure dimensional stability. However, the dosage levels (parts per hundred polyol) will vary significantly between these applications to match the required reaction speeds.
A: "Blue Haze" (glaucopsia) is a physiological reaction where amine vapors cause temporary swelling of the corneal surface in the eye. This bends light entering the eye, creating a halo effect or blue tint to vision. It is reversible but indicates insufficient ventilation. Proper exhaust systems and eye protection are the only effective preventive measures.
A: You must avoid using Copper, Brass, Bronze, and Latex. TEDA is corrosive to copper alloys, leading to equipment damage and product contamination. Latex gloves are permeable to amines and provide no protection. Instead, use Stainless Steel or Aluminum for equipment, and Nitrile or Butyl Rubber for gloves.
